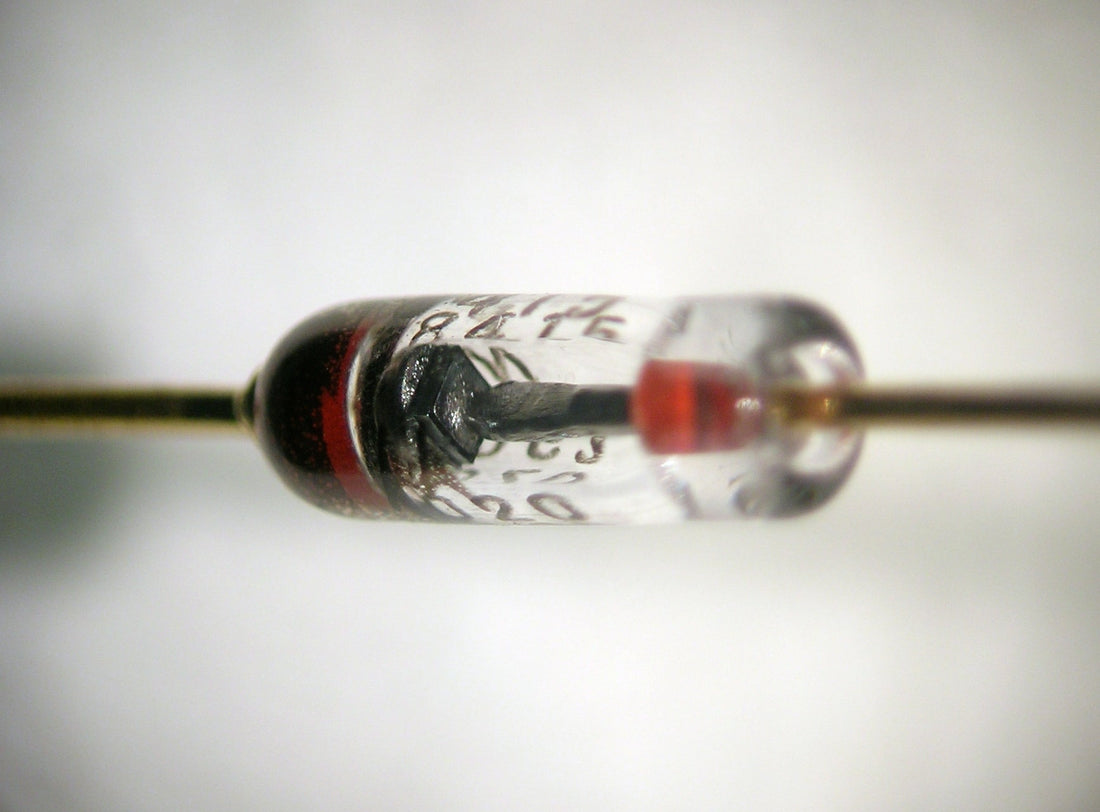

What are diodes used for, and how do the different types of diodes compare? These small semiconductor components are found across a wide range of electronic systems, with designs suited to different functions and operating conditions. This guide explains their shared operating principle, why classifications overlap and how 24 common and specialist designs are used in electronic equipment.

What are diodes used for?

Diodes are used to control the direction and behaviour of electrical current. Common diode uses include rectifying AC into DC, protecting circuits from voltage spikes, regulating voltage, switching signals, detecting light, producing light and generating or controlling radio-frequency and microwave signals in specialist electronic systems.

Most conventional diodes allow current to pass when forward-biased and block it when reverse-biased. Their orientation in a circuit therefore matters, as the correct diode direction is essential for rectifiers, protection circuits and replacement components to work as intended.

The uses of diode components extend well beyond simple one-way conduction. Depending on its design, a diode is used to shape waveforms, steer signals, clamp unwanted voltages, tune a circuit, sense light or generate visible, infrared or laser output.

How many types of diodes are there?

There is no single universally fixed number of diode types because they can be classified by construction, electrical behaviour, power rating, speed or application. The categories also overlap: a high-voltage component may simultaneously be a rectifier, an avalanche device or a fast-recovery diode, depending on its design.

This guide uses 24 practical categories to explain what diodes do in common and specialist systems. Some describe the physical junction, such as Schottky or PIN designs, while others describe a function or operating class, such as rectifier, switching, high-voltage or transient-suppression devices.

Diagrams comparing types of diodes symbols can be useful because modified lines or arrows often show the feature that distinguishes one device from another. However, a symbol alone does not identify voltage, current, speed, power or package ratings, so the part number and manufacturer data still need to be checked.

24 different types of diodes and example diode applications

The following diode examples cover widely used functional, construction and application-based categories. Because one device can fit more than one category, the number is a practical guide rather than a rigid taxonomy. Each entry explains the main diode purpose and gives examples of where that design is commonly used.

  1. Standard PN-junction diode: Our first type of diode is the standard PN-junction diode, formed where P-type and N-type semiconductor materials meet. It conducts readily when forward-biased and restricts current when reverse-biased. General-purpose PN diodes are used for simple rectification, polarity protection, clipping, clamping and signal steering, while many of the more specialised devices below are modified forms of the same basic junction.
  2. Rectifier diode: A rectifier diode is designed primarily for power conversion and is commonly used to turn AC into a one-directional output that can be filtered into DC. Put simply, this diodes function is to conduct during the required part of the AC cycle and block the opposite polarity. Rectifier diodes are used in power supplies, battery chargers, industrial controls and diode boards, often in bridge arrangements.
  3. Signal diode: Signal diodes handle relatively small currents and are selected for fast response, low capacitance and predictable behaviour in low-power circuits. They are used for signal detection, clipping, clamping, waveform shaping and routing in radios, instrumentation, communications equipment and analogue electronics. The term can overlap with switching diode because many small-signal parts perform both roles.
  4. Switching diode: A switching diode is optimised to move rapidly between conducting and blocking states. It is used in digital logic, high-speed signal routing, pulse circuits, protection networks and electronic switching. Compared with a general rectifier, it normally handles less current but changes state more quickly, reducing delay and unwanted charge storage in fast circuits.
  5. Fast-recovery diode: A fast-recovery diode is a rectifier designed to stop conducting reverse current more quickly after the applied voltage changes polarity. Its shorter reverse-recovery time reduces switching losses and electrical noise. Typical applications include switch-mode power supplies, inverters, motor drives, welding equipment, uninterruptible power supplies and other medium- to high-frequency power converters.
  6. Ultrafast-recovery diode: An ultrafast-recovery diode takes the same principle further, with very short reverse-recovery times for higher-frequency and higher-efficiency power conversion. These devices are used in power-factor-correction stages, high-frequency switch-mode supplies, resonant converters, telecom power systems and inverter circuits. Manufacturer definitions vary, so the actual recovery-time, voltage and current ratings matter more than the label alone.
  7. Schottky diode: A Schottky diode uses a metal-semiconductor junction rather than a conventional PN junction. It is valued for its low forward-voltage drop and very fast switching, which can reduce power loss. Common applications include low-voltage power supplies, freewheeling paths, reverse-polarity protection, RF detection and high-speed clamping, although leakage current and reverse-voltage capability must be considered.
  8. Zener diode: A Zener diode is designed to operate in a controlled reverse-breakdown region at a specified voltage. Its main purpose is voltage regulation, voltage referencing and overvoltage limiting. Zener diodes are used in power supplies, sensor interfaces, bias networks, meter protection and simple clamp circuits. They normally require a series resistor or another means of limiting current.
  9. Avalanche diode: An avalanche diode is designed to withstand and use controlled avalanche breakdown when its reverse voltage reaches a defined level. It can absorb transient energy, provide voltage clamping or generate a stable reference in suitable circuits. Applications include surge protection, high-voltage protection networks and noise-generation circuits. The distinction between avalanche and Zener operation can overlap depending on breakdown voltage and construction.
  10. TVS diode: A transient voltage suppressor, or TVS diode, reacts quickly to short overvoltage events and diverts surge current away from sensitive electronics. It is used to protect power inputs, communication lines, automotive electronics, industrial controls and data interfaces from electrostatic discharge, inductive switching and other transients. TVS devices are available in unidirectional and bidirectional configurations for different circuit requirements.
  11. High-voltage diode: A high voltage diode is built to block much larger reverse voltages than a standard low-voltage device. Depending on the application, it may use a long junction structure, multiple internal junctions or series-connected elements. These diodes are used in microwave power supplies, X-ray equipment, lasers, electrostatic systems and industrial high-voltage circuits, where reverse-voltage, current, recovery and insulation ratings must all be matched.
  12. High-power diode: High power diodes are designed to carry substantial current, dissipate heat and withstand demanding electrical conditions. They may be supplied in stud, press-pack, module or other industrial packages that support effective cooling and secure mounting. Applications include large rectifiers, motor drives, welding systems, induction equipment, battery charging, renewable-energy converters and heavy industrial power supplies.
  13. PIN diode: A PIN diode places a wide intrinsic semiconductor layer between its P-type and N-type regions. At RF and microwave frequencies, it can behave like a current-controlled resistor, making it useful in switches, attenuators, limiters and phase-control circuits. PIN devices are common among precision RF and microwave components, while related PIN photodiodes are used for high-speed light detection.
  14. Varactor or varicap diode: A varactor diode is operated in reverse bias so that its junction capacitance changes with the applied voltage. This allows an electrical signal to tune a circuit without a mechanically adjusted capacitor. Varactors are used in voltage-controlled oscillators, radio and television tuners, phase-locked loops, adjustable filters, frequency synthesisers and frequency multipliers.
  15. Light-emitting diode: A light-emitting diode, or LED, releases light when current flows through it in the forward direction. The semiconductor material determines the colour or wavelength. LEDs are used in status indicators, displays, general lighting, vehicle lighting, infrared remote controls, optical communications and sensing systems. They require suitable current control and correct polarity for reliable operation.
  16. Laser diode: A laser diode converts electrical energy into a concentrated, coherent light output. Its semiconductor junction and optical cavity support stimulated emission, producing a narrower and more directional beam than an ordinary LED. Laser diodes are used in fibre-optic communications, barcode scanners, laser printers, optical storage, measurement equipment, LiDAR and medical or industrial instruments, with careful current and temperature control.
  17. Photodiode: A photodiode converts incident light into an electrical current or voltage. It is commonly operated in reverse bias for fast response, although photovoltaic operation is also possible. Photodiodes are used in light meters, optical receivers, encoders, safety sensors, smoke detectors, medical equipment and industrial measurement systems. Sensitivity, wavelength range, dark current and response speed guide selection.
  18. Avalanche photodiode: An avalanche photodiode, or APD, is a highly sensitive photodiode operated at a high reverse bias near avalanche breakdown. Internal carrier multiplication provides gain, allowing weak or rapidly changing light signals to be detected. APDs are used in fibre communications, laser rangefinding, LiDAR, medical imaging and scientific instruments, but require tighter bias control and generally introduce more noise than standard photodiodes.

Other specialist diode types

The remaining designs are less common in everyday power and control circuits, but they remain important in specialised detection, pulse generation and microwave systems. Several use negative-resistance or charge-storage effects, and the word diode is sometimes retained for historical or functional reasons even when the device does not use a conventional PN junction.

  1. Tunnel diode: A tunnel diode uses an extremely heavily doped PN junction that allows quantum-mechanical tunnelling. Its current-voltage characteristic includes a negative-differential-resistance region, enabling very fast operation. Tunnel diodes have been used in microwave oscillators, high-speed switching, trigger circuits and low-power amplifiers, although they are now mainly encountered in specialist or legacy equipment.
  2. Backward diode: A backward diode is related to the tunnel diode but is designed to conduct more readily at small reverse voltages than at equivalent forward voltages. Its low-voltage behaviour makes it useful as a detector or mixer for weak RF and microwave signals, including zero-bias detector circuits where avoiding an external bias supply can be advantageous.
  3. Step-recovery diode: A step-recovery diode stores charge while forward-biased and then turns off very abruptly when driven into reverse bias. The rapid transition creates sharp pulses rich in harmonics. These devices are used in frequency multipliers, comb generators, pulse-shaping networks and microwave signal-generation circuits where a fast, repeatable transition is more important than ordinary rectification.
  4. Gunn diode: A Gunn diode is a two-terminal transferred-electron device made from materials such as gallium arsenide. It does not contain a conventional PN junction, but its negative-differential-resistance behaviour allows it to generate microwave oscillations. Gunn devices are used in radar speed sensors, automatic door sensors, microwave test sources, local oscillators and some communication links.
  5. IMPATT diode: An impact-ionisation avalanche transit-time, or IMPATT, diode combines avalanche multiplication with carrier transit time to create negative resistance at microwave and millimetre-wave frequencies. It can generate relatively high RF power and is used in radar, telemetry, alarms, transmitters and specialised oscillators. Its principal disadvantage is the comparatively high noise associated with the avalanche process.
  6. Point-contact diode: A point-contact diode uses a very small contact between a metal point and a semiconductor material, giving low capacitance and fast high-frequency response. It was important in early crystal radio detectors and remains useful in some RF and microwave detector, mixer and measurement applications. Modern packaged versions are specialised components rather than general-purpose power devices.

Key takeaways on the different kinds of diodes

  • There is no single fixed total because the different types of diode can be grouped by construction, electrical behaviour, speed, power capability or application.
  • Many categories overlap. A device may be both a rectifier and a high-voltage, high-power, fast-recovery or avalanche design.
  • Different diodes are selected according to voltage, current, switching speed, forward drop, recovery behaviour, capacitance, power dissipation, wavelength response and package requirements.
  • The circuit symbol can indicate the general device family, but it cannot replace the part number, datasheet or equipment specification.
  • For replacement work, match the complete electrical and mechanical specification rather than assuming that two devices with similar names are interchangeable.

Understanding these different kinds of diodes makes it easier to see why the same basic two-terminal idea supports so many jobs. The correct type of diode depends on the circuit conditions and required outcome, from straightforward current rectification to voltage protection, optical sensing, light generation and specialist RF or microwave operation.
