When were vacuum tubes invented, who invented the vacuum tube, and how did vacuum tube history progress from early experiments to radio, radar, computers and modern industry? This guide traces the discoveries and developments that turned laboratory effects into practical electronic technology, while also exploring how Penta Laboratories became part of that continuing history through specialist tube development, production and support.

Who invented the vacuum tube?

John Ambrose Fleming is generally credited with inventing the first practical thermionic vacuum tube. He transformed the previously observed Edison effect into a working two-electrode valve that could detect radio signals. Later inventors extended the technology with amplification and higher-power designs, but Fleming receives the principal credit for the device.

Frederick Guthrie documented thermionic emission, Thomas Edison independently observed current flowing from a heated lamp filament to an additional electrode, and J. J. Thomson later identified the electron. These discoveries supplied the scientific foundations that Fleming combined in a practical radio detector.

Fleming's diode could rectify and detect a signal but could not amplify it. Robert von Lieben and Lee de Forest independently pursued three-electrode tubes, with de Forest's Audion adding a control grid. Subsequent high-vacuum improvements transformed the principle into a reliable triode amplifier.

Understanding how vacuum tubes work helps explain why credit is shared across this history. Fleming established one-way current flow, the triode introduced control and amplification, and later tetrodes, pentodes and beam-power tubes addressed limitations involving gain, stability, frequency and power output.

When was the vacuum tube invented?

The first practical thermionic vacuum tube was invented by John Ambrose Fleming in 1904. A British patent for the two-electrode valve was filed on November 16 that year, followed by a corresponding US patent in 1905. Historians generally use 1904 as the starting point for the practical electronic vacuum-tube era.

Fleming was working as a scientific adviser to the Marconi company and was trying to improve the detection of weak radio signals in wireless telegraphy equipment. Existing detectors could be unreliable or require delicate adjustment. By applying the Edison effect inside an evacuated glass bulb, Fleming created a device that rectified rapidly alternating radio-frequency signals so they could be detected more dependably.

The 1904 date needs one qualification. Scientists had used partially evacuated glass tubes for decades, including Geissler tubes, Crookes tubes and the tubes used during early X-ray research. These were important precursors, but Fleming's valve is generally treated as the first practical thermionic vacuum tube designed to perform an electronic function in a circuit.

The history of vacuum tubes

A complete vacuum tubes history timeline begins with experiments in evacuated glassware, not with a fully formed radio component. The milestones below follow the progression from scientific discovery to mass communication, microwave engineering, electronic computing and the specialist power applications in which vacuum tubes remain important.

1850s–1870s: Experiments inside evacuated glass tubes

Heinrich Geissler's improved vacuum pumps and sealed discharge tubes allowed researchers to study electricity in low-pressure gases during the 1850s. William Crookes later developed tubes with a greater degree of evacuation. These devices produced striking glows and beams and helped establish the experimental techniques, glasswork and vacuum control on which later electron tubes depended.

Geissler and Crookes tubes were not electronic amplifiers or radio valves. They contained residual gas and were primarily scientific instruments. Nevertheless, they showed that electrical behaviour changed dramatically as gas pressure fell, giving researchers a controlled environment in which to investigate cathode rays, ionisation and the movement of charge.

1873: Frederick Guthrie reports thermionic emission

British physicist Frederick Guthrie observed that a heated, negatively charged iron sphere could lose its charge, while a positively charged sphere did not behave in the same way. This was an early observation of thermionic emission: the release of electrons from a material when sufficient heat gives them the energy to escape its surface.

Guthrie did not build a practical electronic tube from the effect, but his experiment identified the physical process that later supplied electrons inside thermionic valves. A heated filament or cathode would become the electron source at the centre of diode, triode, tetrode and pentode operation.

1883–1884: Thomas Edison observes the Edison effect

While investigating why incandescent lamp filaments darkened and failed, Thomas Edison placed an additional metal plate inside a lamp bulb. He found that current could pass through the evacuated space from the hot filament to a positively charged plate, but not in the opposite direction. Edison observed the effect in 1883 and patented an electrical indicator application in 1884.

Edison recognised that the current changed with filament temperature and considered using it as a measurement device. He did not turn it into a radio detector or general electronic component. Fleming later realised that its one-way behaviour could rectify alternating current, making the Edison effect a direct technical precursor to the thermionic diode.

1895–1897: X-rays, the electron and Machlett's early roots

Wilhelm Röntgen discovered X-rays in 1895 while experimenting with a Crookes-type discharge tube. In 1897, J. J. Thomson demonstrated that cathode rays were streams of much smaller negatively charged particles, later called electrons. These discoveries clarified the physics inside evacuated tubes. That same year, Karl Ferdinand Braun developed a cathode-ray tube with a fluorescent screen, creating an important precursor to later oscilloscopes, radar displays, televisions and computer monitors.

E. Machlett and Son was also founded in 1897 as a manufacturer of scientific glassware. Its glassworking expertise became connected with early X-ray equipment, laying the foundation for the later Machlett Laboratories. Penta Laboratories later carried this heritage forward by acquiring the Machlett brand and incorporating its long-standing specialist tube identity into the wider Penta business.

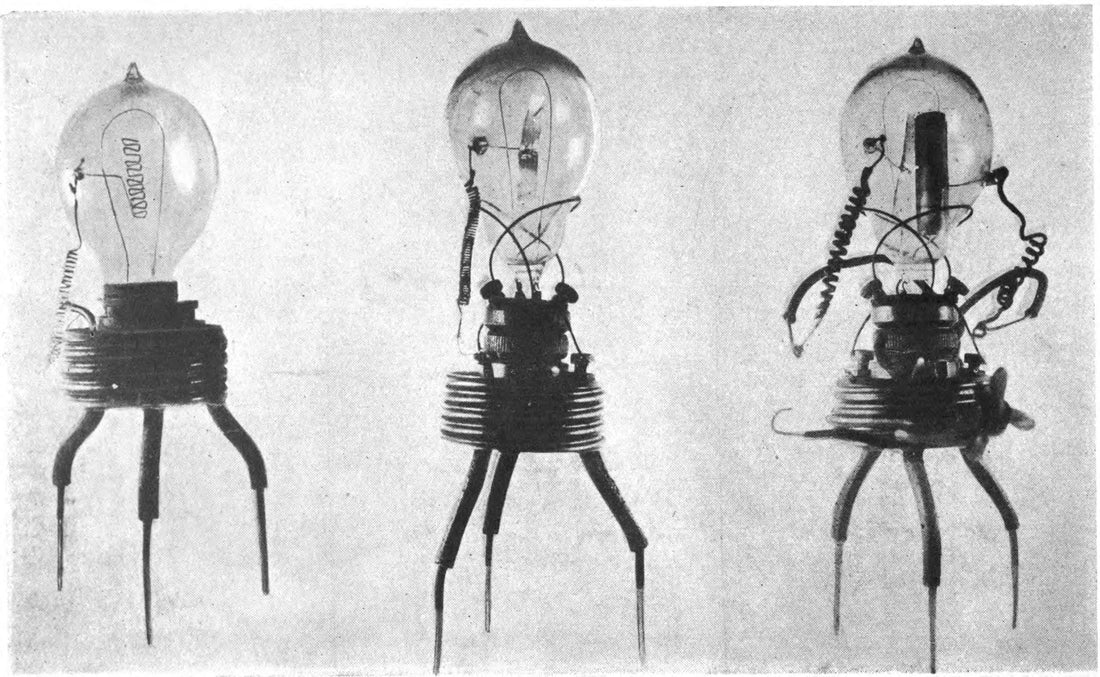

1904–1905: Fleming creates the first practical thermionic valve

Fleming revisited the Edison effect while seeking a more dependable detector for Marconi wireless systems. His valve placed a heated cathode and a plate inside an evacuated bulb. When the plate was positive, emitted electrons crossed the vacuum; when its polarity reversed, current was blocked. The resulting rectification made radio-frequency signals easier to detect.

The Fleming valve was a diode, meaning that it contained two active electrodes. It was a genuine electronic component rather than simply an experimental discharge tube, but it could only rectify and detect signals. The next major step was a tube whose current could be controlled by a third electrode.

1906–1908: Von Lieben and de Forest introduce grid control

Robert von Lieben and Lee de Forest independently developed tubes with an additional control electrode during 1906 and 1907. Von Lieben's work was aimed largely at amplifying telephone signals. De Forest placed a grid between the filament and plate in his Audion, allowing a small voltage on the grid to influence a much larger plate current.

De Forest's early Audions contained some gas and were inconsistent, and their full amplifying ability was not initially understood. Even so, grid control was the decisive idea behind the triode. De Forest's United States grid-Audion patent was granted in 1908, and the design soon became the foundation of electronic amplification and oscillation.

1912–1915: Reliable amplification changes communications

By around 1912, engineers had recognised that the Audion could amplify continuously rather than merely detect radio signals. Harold Arnold at AT&T and Irving Langmuir at General Electric then developed improved high-vacuum triodes. Better evacuation made tube behaviour more predictable by allowing electron flow to be governed primarily by the electrodes instead of residual gas.

Triode repeaters strengthened weakening telephone signals over long lines, contributing to the first transcontinental telephone service in the United States in 1915. Triodes also enabled sensitive radio receivers, electronic oscillators, public-address systems and transmitters. Electronics could now create and amplify signals, not simply detect them.

1913: The Coolidge tube advances medical X-ray technology

William D. Coolidge developed a hot-cathode X-ray tube using a heated tungsten filament as a controllable electron source. The design allowed tube current and X-ray output to be regulated more precisely and supported higher operating voltages, making X-ray equipment more dependable for medical diagnosis, radiation treatment and scientific work.

The Coolidge tube separated the production of electrons from the residual gas inside earlier discharge tubes. This made X-ray generation more stable and repeatable and established the basic hot-cathode principle used by many later medical and industrial X-ray tubes.

1915–1919: The screen-grid tetrode addresses triode limitations

Triodes suffered from unwanted capacitance between the control grid and plate, which could cause feedback and instability at higher frequencies. Walter Schottky developed a second grid that acted as an electrostatic screen between them. His screen-grid work began during the mid-1910s, with a United States patent issued in 1919.

The extra grid created a four-electrode tube, or tetrode. It reduced interaction between the input and output circuits and allowed greater gain at radio frequencies. Later refinements made screen-grid tubes commercially important, although secondary emission from the plate introduced another performance problem that prompted further innovation.

1920–1921: Albert Hull develops an early magnetron

Albert W. Hull at General Electric developed an early magnetron using a cylindrical anode and a magnetic field to control electron motion. His work showed that magnetic control could produce oscillation at radio frequencies and established the magnetron as a distinct class of vacuum device.

Hull's design was not the later high-power cavity magnetron used in wartime radar, but it provided an important starting point. Magnetron research continued through the following decades as engineers sought more efficient ways to generate very-high-frequency and microwave energy.

1920s: Vacuum tubes drive broadcasting and electronic entertainment

Commercial radio broadcasting expanded rapidly during the 1920s. Tube oscillators generated carrier signals, power tubes drove transmitters and amplifying tubes made sensitive domestic receivers practical. Vacuum-tube audio amplification also supported loudspeakers, public-address equipment, telephone networks and the transition to synchronised sound in cinemas.

Cathode-ray tubes developed into display devices for oscilloscopes, experimental television and later radar and consumer television. Improvements to cathodes, filaments, vacuum pumps, electrode spacing and manufacturing made tubes more efficient and consistent. The industry also began producing increasingly specialised designs rather than relying on a few general-purpose forms.

1926: Bernard Tellegen develops the pentode

Bernard D. H. Tellegen, working with Gilles Holst at Philips, developed the pentode in 1926. A fifth electrode, the suppressor grid, was placed between the screen grid and plate. It reduced the secondary-emission problem that could make tetrode current behave poorly over part of its operating range.

Pentodes provided high gain, improved efficiency and useful power output, and versions were developed for radio-frequency amplification, audio output and transmitting service. As the number and arrangement of electrodes diversified, the available vacuum tube types expanded to suit increasingly specific electronic tasks.

1933–1936: Beam-power tube development

Engineers at EMI, including Isaac Shoenberg, Cabot Bull and Sidney Rodda, developed a beam-power arrangement during the early 1930s. Instead of relying on a conventional suppressor grid, aligned grids and beam-forming structures concentrated electrons into sheets and created a region that helped return secondary electrons to the plate.

The first marketed beam tetrode appeared in Britain as the Marconi N40 in 1935. RCA introduced the 6L6 in 1936, helping establish the beam-power tube as an important design for efficient audio and radio-frequency power amplification. Such tubes were also commonly described commercially as beam pentodes or beam-power pentodes, despite their different internal construction.

1934: Machlett Laboratories enters specialist tube production

Machlett Laboratories was established in 1934 to manufacture X-ray tubes, building on the scientific-glass expertise of E. Machlett and Son. It grew into a prominent producer and later expanded into transmitting tubes and other specialist power-tube work, including contracts associated with the United States Atomic Energy Commission.

Machlett's development illustrates how vacuum-tube technology divided into specialised industries. Receiving tubes served radios and consumer electronics, while larger and more demanding electron tubes were engineered for medical imaging, broadcasting, scientific equipment, industrial systems and high-power radio-frequency generation.

1937–1943: Klystrons, magnetrons and travelling-wave tubes

Russell and Sigurd Varian demonstrated the klystron tube at Stanford University in 1937. It used velocity modulation and electron bunching to generate or amplify microwave-frequency energy. Klystrons became important in radar, communications, scientific instruments and particle accelerators, extending vacuum electronics well beyond conventional grid-controlled receiving tubes.

Building on earlier magnetron research, John Randall and Harry Boot produced a powerful cavity magnetron at the University of Birmingham in 1940. Its compact generation of high-power microwaves transformed centimetric radar during the Second World War. Rudolf Kompfner developed a practical travelling-wave tube in Britain in 1942 and 1943, enabling broad-band microwave amplification that later became valuable in radio relay and satellite communications.

1939–1945: Wartime demand accelerates tube technology

The Second World War created extraordinary demand for reliable receiving, transmitting and microwave tubes. They were essential to radio communications, radar, navigation, electronic countermeasures, proximity fuzes, test equipment and early electronic computation. Governments and manufacturers invested heavily in better materials, tighter tolerances, improved cathodes and production methods capable of supplying large quantities.

The cavity magnetron was particularly important because it allowed powerful microwave radar sets to be made small enough for aircraft and ships. Klystrons, conventional power tubes, cathode-ray displays and many specialised devices also contributed. Wartime research left a mature vacuum-electronics industry that moved quickly into post-war broadcasting, television, aviation, science and medicine.

1943–1946: The vacuum tube computer era begins

Vacuum tubes could function as extremely fast electronic switches as well as amplifiers. Britain's Colossus machines used thousands of valves from 1943 and 1944 to process encrypted wartime communications. In the United States, ENIAC was completed in 1945 and publicly unveiled in 1946 with more than 17,000 vacuum tubes.

A vacuum tube computer was vastly faster than an electromechanical relay machine, but it occupied considerable space, consumed substantial power and generated intense heat. Tube reliability became a major engineering concern. Even so, these machines demonstrated that large-scale electronic digital calculation was practical and prepared the way for stored-program computers and commercial data processing.

1947: The transistor starts a new branch of electronics

John Bardeen and Walter Brattain demonstrated the first working transistor at Bell Laboratories in December 1947, with William Shockley making further foundational contributions. The semiconductor device could amplify and switch signals without a heated cathode, glass envelope or vacuum, offering a route to smaller equipment with lower power consumption.

The transistor did not eliminate tubes immediately. Early transistors had limitations in frequency, power, consistency and cost, while tube production was already well established. During the following decades, however, semiconductors improved rapidly and displaced vacuum tubes from most portable devices, computers and mass-market consumer electronics.

1951: Penta Laboratories is founded

Penta Laboratories was founded in 1951 and established itself within the post-war specialist electron-tube industry. The company developed and manufactured beam-power pentodes and other power tubes, building expertise across ceramic-and-metal tubes, triodes, tetrodes and related radio-frequency and microwave components.

From its foundation in 1951, Penta Laboratories helped advance post-war vacuum-tube technology through the development, production and supply of specialist tubes. Its expertise supported broadcasting, industrial equipment, research, defence, medical systems, scientific applications and professional audio, helping sustain high-power and application-specific vacuum electronics across demanding markets.

1952 onward: Vacuum-tube technology becomes a field of preservation and collecting

Interest in preserving tube-era technology began before vacuum tubes had disappeared from everyday equipment. In 1952, radio collectors Bruce Kelley, George Batterson and Linc Cundall founded the Antique Wireless Association to collect early wireless and radio equipment and save its history. Its first museum opened in a barn that same year and expanded as donations and collector interest grew.

This marked an important cultural shift: tubes were no longer only working components but historical artefacts whose makers, construction and applications were worth documenting. Collectors later built specialist archives around rare tubes, early radios, television equipment, manuals and test instruments, supporting the restoration knowledge and replacement market that continue today.

1950s–1960s: Tubes reach their peak and diversify

The 1950s brought enormous demand for tubes in radios, television sets, HiFi equipment, communications, radar and test instruments. Miniature tubes and subminiature vacuum tubes reduced equipment size and heater power, while cathode-ray picture tubes and Vidicon camera tubes helped television broadcasting and ownership expand. Tube amplifiers also became central to electric-guitar performance, recording studios and domestic high-fidelity sound.

Computing, however, became one of the clearest early transitions away from tubes. A prototype transistor computer operated at Manchester in 1953, Bell Laboratories completed TRADIC in 1954, and by 1960 new computer designs were fully transistorised. Vacuum tubes nevertheless remained important in displays, test instruments and high-power systems where early semiconductors could not yet match their frequency, voltage or output capabilities.

1950s–1970s: Magnetrons bring microwave technology into homes

The cavity magnetron found a major post-war use beyond radar when microwave energy was adapted for cooking. Raytheon's first commercial Radarange was installed in 1947, but smaller ovens intended for home use appeared during the mid-1950s. Falling prices and more practical countertop designs helped microwave ovens become increasingly common during the 1970s.

This was a striking reversal of the wider move toward semiconductors. Even as transistors replaced receiving tubes in radios and computers, a specialised vacuum device was moving into domestic kitchens in large numbers. The magnetron showed that vacuum electronics could remain commercially successful when it offered an efficient way to generate substantial microwave power.

1962 onward: Travelling-wave tubes enable satellite and deep-space communications

Vacuum electronics also became fundamental to the space age. Telstar 1 relayed television across the Atlantic in 1962, and traveling wave tube technology supplied key microwave amplification in early communications satellites and their ground stations. Its ability to provide useful power at high frequencies helped turn experimental satellite links into global telephone, television and data networks.

Travelling-wave tubes later supported lunar and deep-space missions, including the transmission of television images from Surveyor 1 in 1966 and communications with Voyager and other spacecraft. Continual improvements in efficiency, power and service life allowed these tubes to remain important in satellite broadcasting, radar and space communications long after most everyday electronics had become solid-state.

1960s–1970s: Semiconductors replace tubes in most consumer equipment

Transistors and integrated circuits gradually took over radios, televisions, telephone systems and computers. They were smaller, cooler, more rugged and easier to combine in dense circuits. By the 1970s, the familiar receiving tube had largely disappeared from newly manufactured mainstream consumer electronics, although many existing tube-based products remained in service.

One major consumer exception was the cathode-ray tube. CRT picture tubes remained standard in televisions and computer monitors for decades after transistorised circuitry took over most other functions. Flat-panel displays eventually displaced them, and by around 2010 large-scale CRT production had largely ended, leaving restoration, specialist and legacy uses.

Vacuum electronics did not vanish. High-power broadcasting, radar, microwave heating, satellite links, medical imaging, scientific research and certain military systems continued to require tube technologies. Audio manufacturers and musicians also retained an interest in valves for their circuit behaviour, overload characteristics and compatibility with established amplifier designs.

1973–1988: Penta, Raytheon and Machlett

Raytheon acquired Penta Laboratories in 1973, bringing Penta's specialist tube expertise into a wider organisation active in transmitting tubes, X-ray tubes, magnetrons and other high-power electron devices. Machlett was already part of Raytheon's microwave and power-tube operations, with Penta and Machlett continuing as separate divisions.

In 1988, Machlett was sold to Varian, and around the same period Penta returned to independent ownership. Penta emerged with specialist power-tube manufacturing expertise and continued serving markets where dependable replacement supply, rebuilding knowledge and application-specific tube matching remained important.

Later developments: Penta acquires the Machlett brand

Penta later acquired the Machlett brand, bringing together two long-standing tube-industry lineages. The business retained experienced personnel associated with Raytheon's Power Tube division and revitalised Machlett manufacturing and service activities, including magnetrons and components for industrial microwave systems.

The acquisition combined Penta's post-1951 tube-production experience with Machlett's roots in scientific glass, X-ray tubes and transmitting technology. Together, these capabilities strengthened Penta's position among specialist vacuum tube manufacturers supporting high-power, medical, industrial, broadcast and microwave applications that continue to rely on vacuum devices.

Vacuum tubes today

By the late twentieth century, vacuum tubes had also gained a second life through vintage equipment, restoration and collecting. Museums, collector organisations, specialist publications and later online communities documented rare tube types and preserved repair knowledge. Musicians and audio manufacturers continued using tube circuits, with HiFi tubes remaining part of specialist listening and restoration markets while original valves, radios and amplifiers became sought-after historical components as well as working equipment.

A common question is: are vacuum tubes still made for modern equipment? Yes. They continue to be produced and used in high-power radio and television transmitters, radar, industrial RF and microwave heating, medical imaging and treatment systems, particle accelerators, satellite communications, scientific instruments, guitar amplifiers and specialist HiFi equipment.

Modern solid-state electronics handles most low-power switching and amplification, but certain vacuum devices can efficiently generate or control very high voltages, powers and microwave frequencies. Magnetrons, klystrons, travelling-wave tubes, power triodes, tetrodes and specialised pentodes therefore remain practical technologies rather than merely historical components.

The central answer remains that Fleming invented the first practical thermionic vacuum tube in 1904. Its wider history, however, belongs to Guthrie, Edison, Thomson, von Lieben, de Forest, Langmuir, Arnold, Schottky, Tellegen and many later engineers and manufacturers. Penta Laboratories and Machlett carry that industrial lineage forward through specialist tube expertise and support for applications that continue to depend on vacuum technology.
